Description

Feature:
1. Both plug and socket are smooth and through-hole without valve designed, which would cause minimal pressure drop.

Moreover, this quick coupling is easy to be cleaned up when the same pipe required to transfer different fluid.

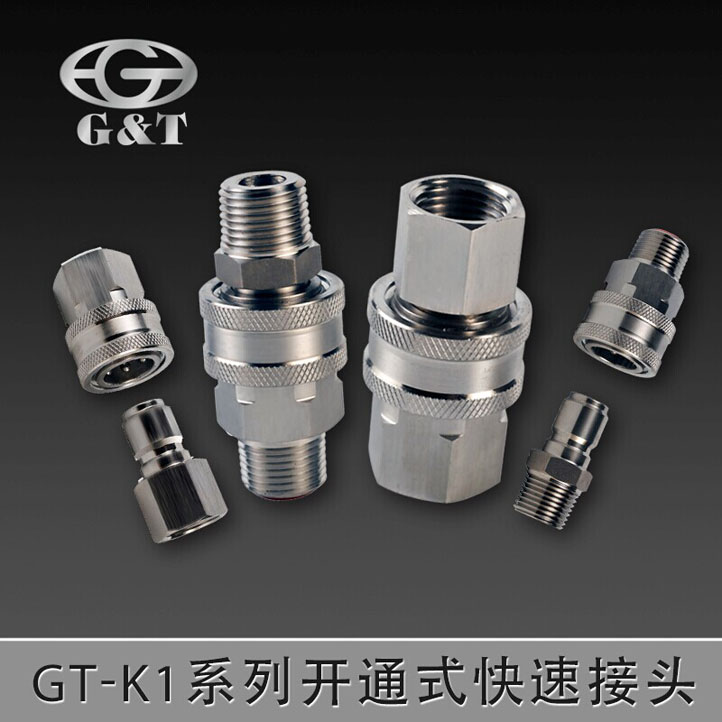

2. GT-K1 couplers and nipples are machined from solid bar stock for durability.
3. There are three kinds of material available for GT-K1: Brass and 304 stainless steel.
4. The ball locking grooves of GT-K1 nipples are hardened to resist the brinelling by high cycle rates and pressure

surges.
5. The GT-KC is an Interchangeable coupling because no matter dimension or function, it the can interchange the similar

couplings made by other manufactures.
6. Compatible with 3/8 TEMA 3800 KEW Series.
Application: The GT-K1 Series is non-valved coupling, which fit for the applications required maximum flow. Its smooth

through hole design makes it to the lowest pressure drop among the quick couplings, which fit for the high-pressure water

or steam washing equipment, carpet cleaning equipment and die casting cooling pipe. It is usually in the food processing,

fluid and dye transfer production line.
