Description

Feature:

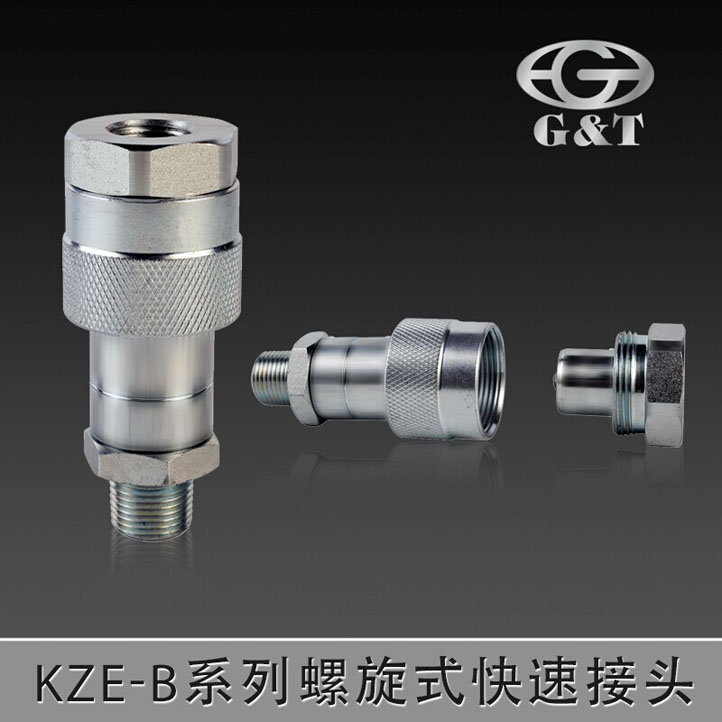

1. Machined from solid steel barstock for durability.
2. This series of couplers adopt threaded sleeve locking mechanism, mates with matchable male threads on the nipple. These two halves must be manually threaded together.
3. Hard chrome alloy ball valving. The ball can be loaded on the valve seat by the springs.
4. The valve provides a metal-to-metal seal between the ball and coined seat.
5. The interface seal is polyurethane which can bare high pressure.
6. The threaded valve retainer could stop the valve to assure the valve alignment firmly.
7. Compatible with PARKER 3000 Series, FASTER PVVM Series.

Application:
KZE-B Series coupling adopt thread locking system and precision ball-type check valves design for extreme high pressure applications such as portable hydraulic jacks.
